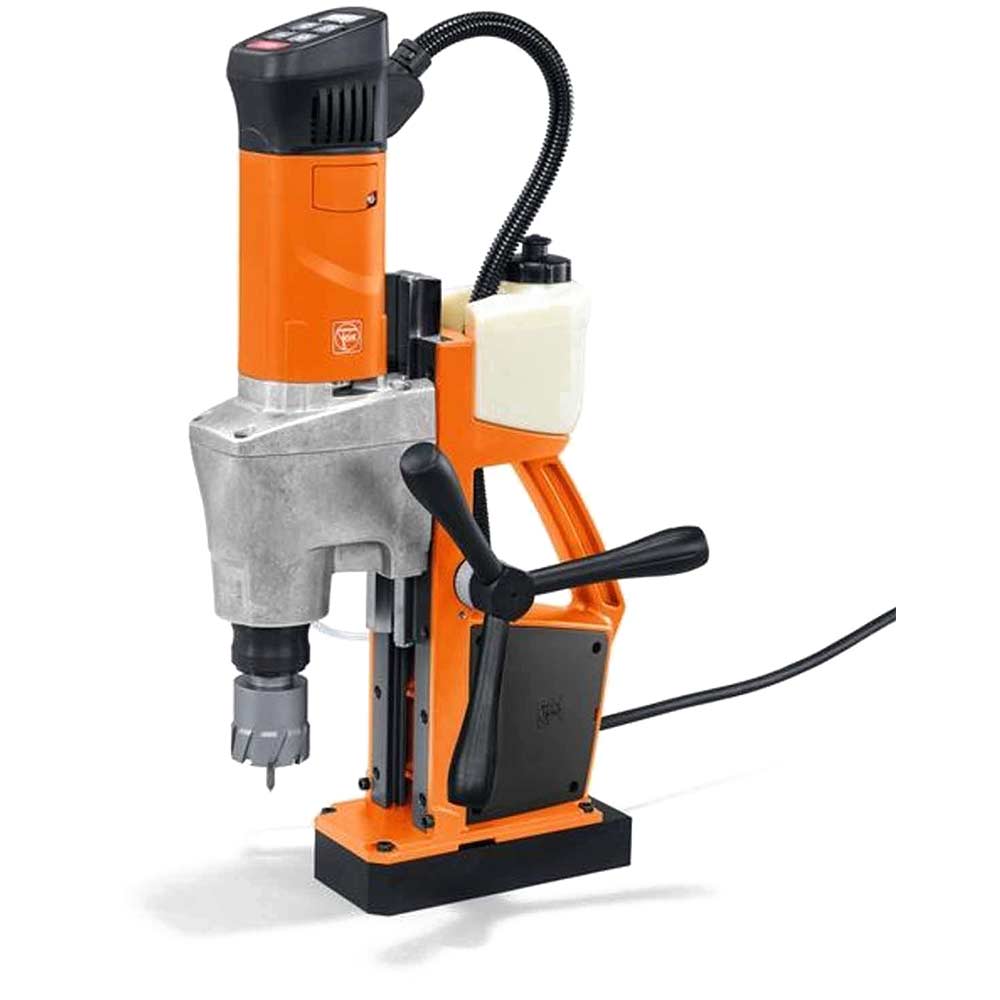

Fein KBM 50 Q Magnetic Drilling Machine

Description

The Fein KBM 50 Q is a lightweight yet powerful 2-speed universal magnetic core drill, designed for maximum functionality in both the workshop and construction site. With a FEIN 1,200 W high-power motor and tacho electronics, it delivers stable speed performance for efficient and economical drilling. Offering clockwise/anti-clockwise operation, electronic speed control, and a 315 mm stroke range, this drill is perfect for core drilling, twist drilling, tapping, countersinking, and reaming. Its compact, weight-optimised design ensures an ideal power-to-weight ratio, while the low-wear tool construction with a swivel-mounted motor cable protection hose enhances durability in tough industrial applications. The user-friendly interface minimises errors, and the magnetic holding force display ensures secure positioning. For added convenience, the feed handwheel can be moved to either side, and the integrated coolant tank extends core drill bit life. Additional features include a speed-saving memory function, a personal safety switch, and a high magnetic holding force for reliable operation. Specifications • Voltage: 110v • Input: 1200 W • Output: 640 W • Speed, full load: 130-260 rpm • Speed, no load: 260-520 rpm • Carbide core drill bit max. ⌀: 50mm • HSS core drill max. ⌀: 40mm • Core drill, drilling depth max: 50mm • Twist drill max. ⌀: 16mm • Tapping: M16 • Countersinking max. ⌀: 31mm • Reaming max. ⌀: 16mm • Core drill holder: 3/4 in Weldon • Stroke: 145mm • Cable with plug: 4m • Weight according to EPTA: 14kg Contents • 1 x KBM 50 Q Magnetic Drilling Machine • 1 x coolant tank • 1 x lashing strap • 1 x swarf hook • 1 x centering pin • 1 x contact guard • 1 x case
