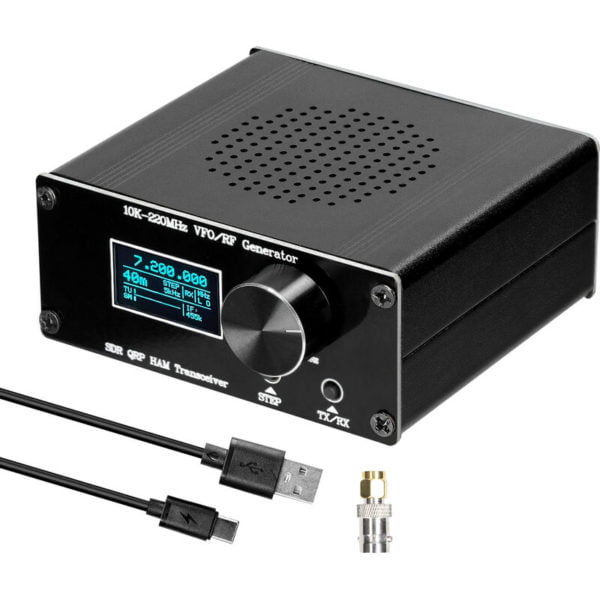

20K-220MHz Superheterodyne Receiver Software Defined Radio ham qrp Transceiver rf Generator vfo Radio Debugger – Multicolor

Description

This is a VFO (Variable Frequency Oscillator) project that can be used for DIY self-made devices such as superheterodyne receivers, DCR transceivers, software defined radio transceivers or Ham QRP transceivers. It also has bar graph indicators for signal strength (S-Meter) and 20 Band presets. And can also be used as an RF/clock generator. Features: It has 10kHz to 220MHz working ranges. 0.5PPM high precise Tcxo clock, the frequency is more accurate. Tuning step of 1Hz, 10Hz, 1kHz, 5kHz, 10kHz and 1MHz. Intermediate frequency (IF) offset (+ or -) is adjustable. 20 band presets (shortcuts) for BCB and HAM frequencies. Equipped with generator function mode. RX/TX mode selector for Homebrew QRP transceivers. The bar graph of the signal meter through the analogs input (ADC). It can be used as a local oscillator on Homebrew radio receivers (such as superheterodyne, software defined radio, direct conversion and Homebrew QRP transceivers). Can be used as a simple RF/clock generator for
