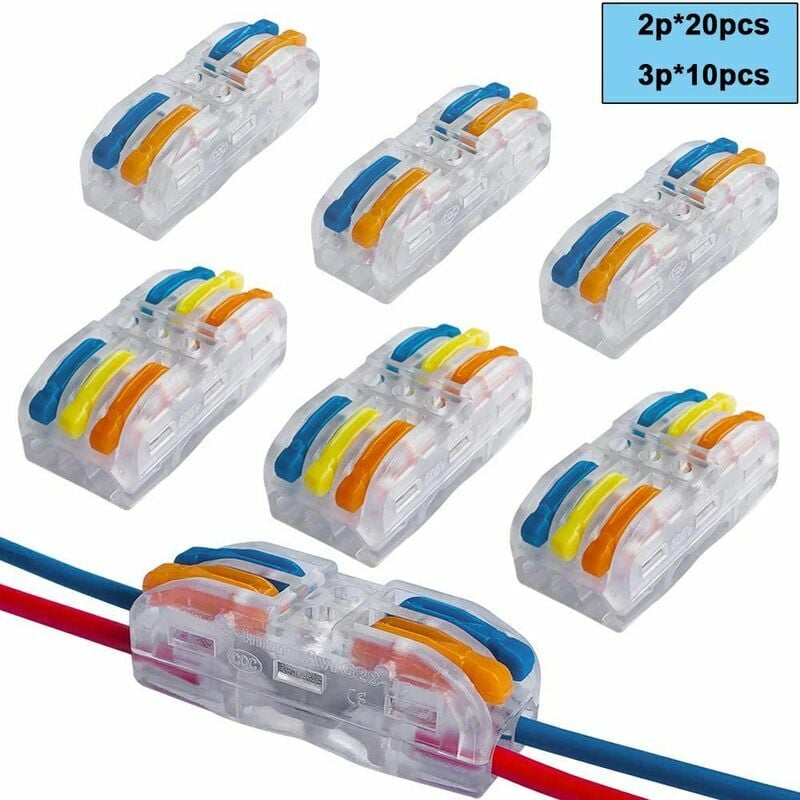

30Pcs Premium Lever-Nut Wire Connector Kit, Bilateral Transparent Conductive Compact Wire Connectors, Compact Connector Spring Terminal Block

Description

Specifications: ●Material: Tinned Copper + Modified Nylon PA66 ●Size: (L*W*H) SPL-2: 40 X 13.5 X 14.5mm SPL-3: 40 X 18.5 X 15mm ●Weight: 6.8g, 9.5 g ●Color: Orange+Yellow+Blue+Transparent ●Package Include: 4 Hole Lever-Nut Wire Connector X 20Pcs 6 Hole Lever-Nut Wire Connector X 10Pcs Plastic Storage Box X 1Pcs Rated Voltage 400V / 4KV, rated current 32A, rated power 7KW. Suitable for 0.08~2.5mm² / 28~14 AWG size solid copper wire. Suitable for 1.5~2.5mm² / 16~14 AWG size stranded hard copper wire. Suitable for 0.08~4 mm² / 28~12 AWG size stranded soft copper wire. How to use? 1. Open the wire case to 9-10mm. 2. Push the orange lever 90°. 3. Connect the wires. 4. Press the lever to close the clamp. Advantage: ●Suitable for a variety of wire sizes. ●Quick connection plug and play. ●Built-in test point. Maintenance-free connection. ●Low installation cost and safe operation. ●The control lever eliminates the need for tools. ●Maximum continuous service temperature is 105°C. ●Different
