80/500W Solar Panel Generator Kit With MPPT Controller

Description

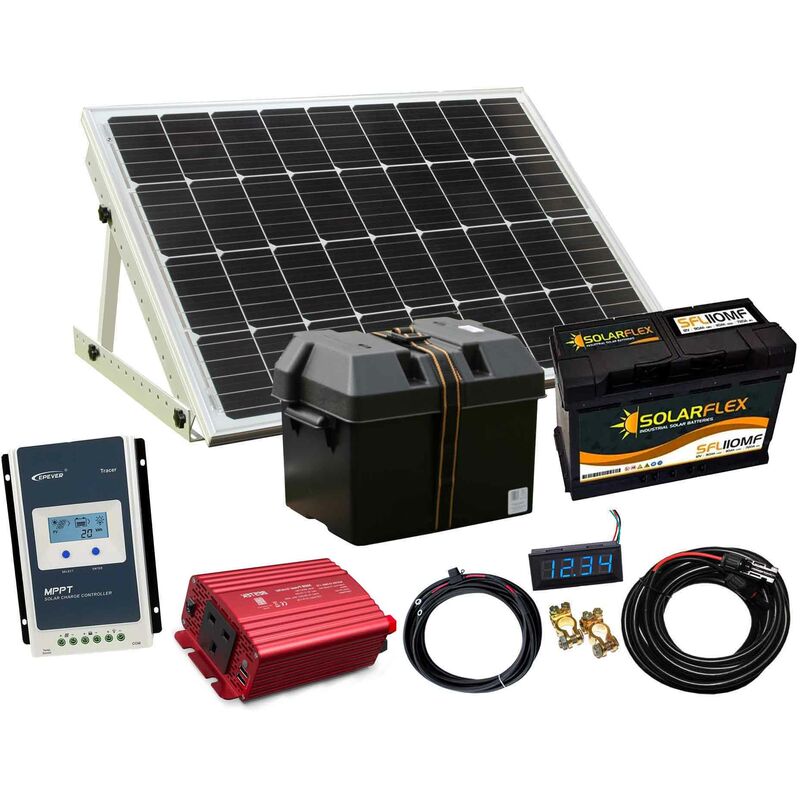

Kit Contents – 80w Solar Monocrystalline Panel with MC4 connector plugs Multi angle position aluminium solar panel mounting rack 100Ah deep cycle wet lead acid battery All weather battery box 10A MPPT Solar charge controller 500w Inverter 5M Solar power cable with MC4 connector plugs 1.5M cable with in line fuse and ring connectors Digital volt meter Battery clamps (pair) Technical – Solar Panel Maximum power – 80w Maximum power voltage (Vmp) 18V Maximum power current (lmp) 4.45A Open Circuit voltage (Voc) 22.54V Short Circuit Current (lsc) 4.76A Weight 6 Kg Size 770 x 680 x 25mm Power tolerance +/- 3% Inverter (Changes 12v DC into 240V AC to power devices normally plugged into the mains grid supply) Rated Power: 500W, Peak Power: 1000W Input Voltage: DC 12V, Output Voltage: 230VAC±5%/50HZ ±3HZ USB Output Power: DC 5V 4.2A (5.2A Max), two x 2.4A Working Temperature: -10?~40? AC Outlet Standard: UK Solar Charge Controller – Technical Tracer AN Series 1210AN – Nominal System Voltage
