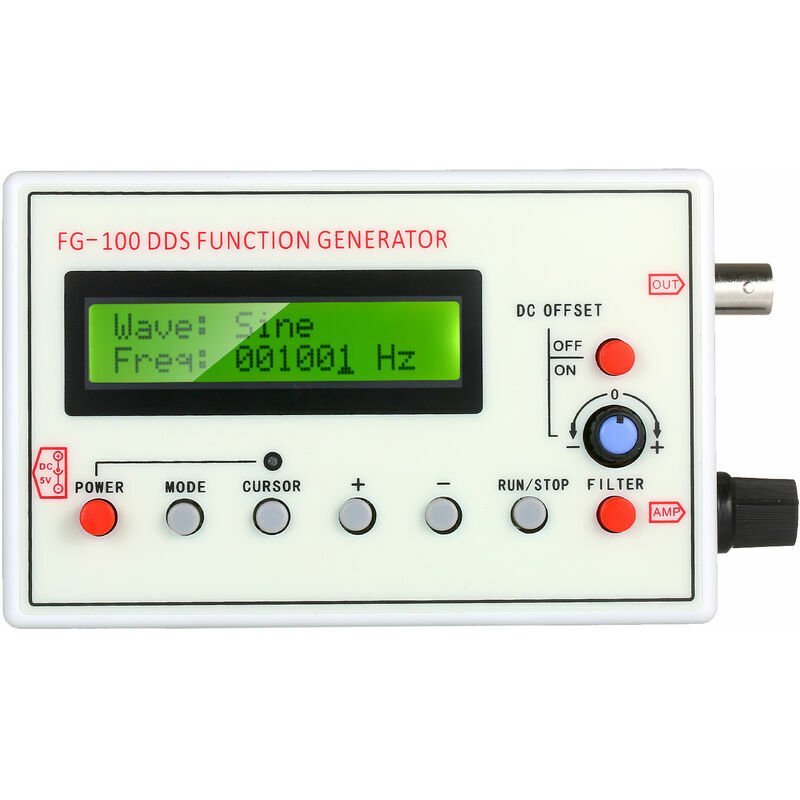

FG-100 1HZ-500KHZ function generator with USB charging cable

Description

Features: Output waveform – sine, wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave, wave electrocardiogram (ECG wave), noise wave. Frequency range DDS – Sine wave 1 to 500 KHz (output amplitude will decrease with further increase in frequency), other forms of & #39; wave 1Hz-50KHz (but the upper limit of the adjustable frequency is not limited, if the distortion and dither requirements are not high, use the frequency can be further increased). Application – Due to excellent DSS accuracy and frequency stability, it can also be used to calibrate the sweep time factor for oscilloscopes. You can also use its square wave to calibrate your oscilloscope attenuator or adjust your oscilloscope probe Versatile Power Supply – Its power supply can be DC adapter or lithium battery. DC 4-10V power supply range, it is recommended to choose DC 5V when using the adapter and 3.7V lithium battery when using the battery. Large LCD Display – Large LCD display with backlight
