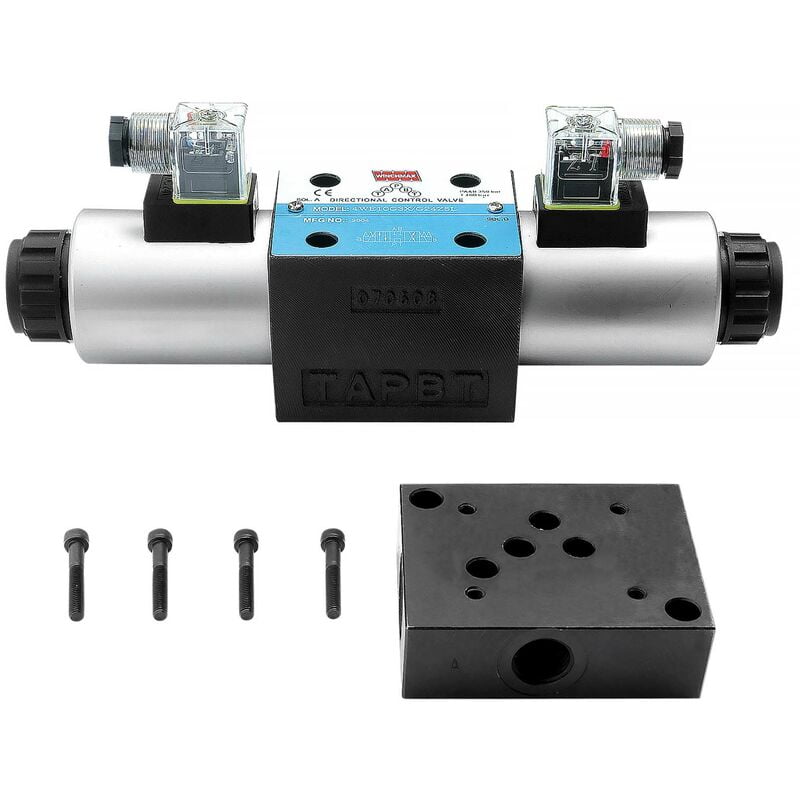

Winchmax – CETOP5/NG10 Solenoid Valve and Manifold Subplate

Description

CETOP5/NG10 Solenoid Valve and Manifold Subplate Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 24V Solenoid-operated directional spool valve used to start, stop and direct the oil flow. Features Double 24v Coils. High Flow up to 120l/min. Removable DIN plug connector with clear cover, cable gland and LED indicator. Configuration; Spring centred P open to Tank, A & B Blocked. Max Pressure P,A,B, 31.5 Mpa (350 bar / 4500 psi). Manual override feature. Manifold Subplate Cetop5/NG10 Hydraulic These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise control. Features Forged Steel Construction. Side Ported P,T,A,B. Port size 1/2 inch BSP. Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical. VAT invoice
