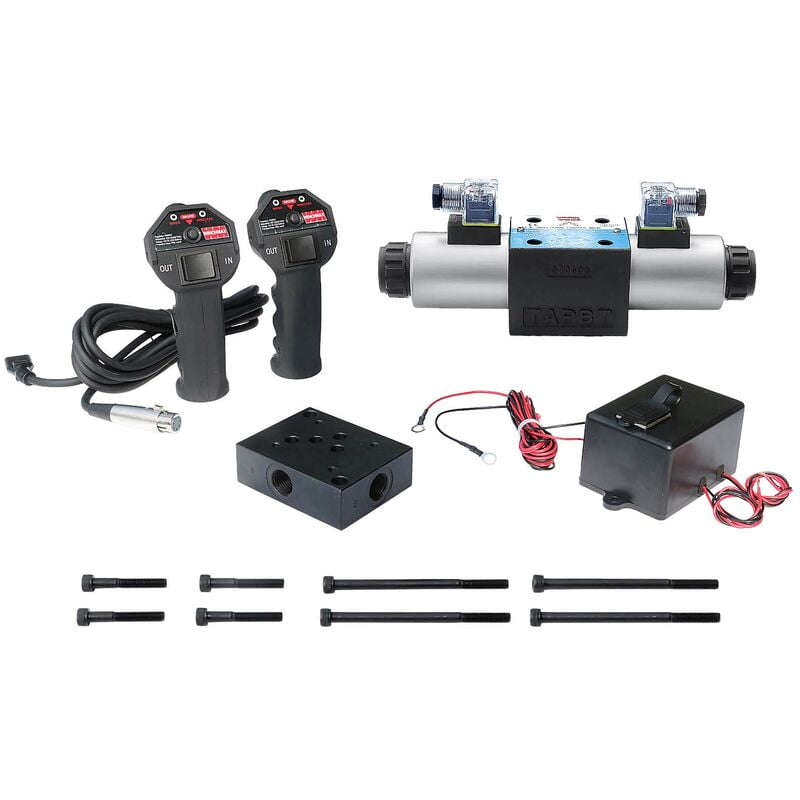

Winchmax – CETOP5/NG10 Solenoid Valve, Manifold Subplate and Remote Control

Description

CETOP5/NG10 High Flow Wireless Remote Control Operated Modular Directional Control Valve with Pressure Regulator Manifold Block. Wireless high flow directional control for larger hydraulic winches or where higher speeds are desirable. Solenoid Operated Directional Hydraulic Control Valve, CETOP5/NG10 Three-Position 24V Solenoid-operated directional spool valve used to start, stop and direct the oil flow. Features Double 24V Coils. High Flow up to 120l/min. Removable DIN plug connector with clear cover, cable gland and LED indicator. Configuration; Spring centred P open to Tank, A & B Blocked. Max Pressure P,A,B, 31.5 Mpa (350 bar / 4500 psi). Manual override feature. Manifold Subplate Cetop5/NG10 Hydraulic These steel plate covers have been designed to replace valves on the steel manifold and work to provide a pressure blank, which will enable the remaining station to operate. A manifold subplate with reliable relief valves will improve your system’s overall safety and precise
